    CNC Simulator

    Plan, program and check using digital twins

    The Tebis CNC Simulator lets you fully plan, program and check your NC machining operations with all components in the Tebis NC programming environment. Prerequisite: All machines, tools, units and clamping devices are stored with components on a one-to-one basis as digital twins in the virtual manufacturing environment. This enables the detection and correction of potential collisions and limit switch problems before NC output. Synchronization with the postprocessor or networking with the machine are not necessary. Time-consuming and cost-intensive approach processes are eliminated. Use Tebis simulation technology to lay the foundation for multi-machine operation and reduced-personnel manufacturing

    Maximum reliability
    Plan, program, check and correct using digital twins.
    Directly in the CAM environment
    Control and check the machine with all limitations, traverse paths and kinematics right in the NC programming environment.
    Optimal machine utilization
    Precisely calculate machining times.

    Digital twins for maximum process reliability

    All of the components in your special manufacturing environment can be realistically stored in virtual process libraries in Tebis. The machine library includes over 1,400 virtual machine models from different manufacturers in 3,700 variants. The entire range of common machine controls and common machine types are supported: This also includes complex multi-axis machines and multi-function machines, including turning/milling machines, lathes with main and secondary spindles, deep drilling machines and robots with additional axes. We digitize your individual adaptations directly on site. We create and approve postprocessors and virtual machine models.

    All tool assemblies can be represented with absolute precision in the tool library, including HPC cutters and circle-segment cutters with all holders. And of course, zero-point clamping systems and units such as jaw chucks, study rests and tailstocks are fully accounted for. This is what makes the checking and correction of toolpaths before NC output so reliable: The completeness of the libraries and the high degree of detail of the digital twins.

    On request, we can measure your machine and all accessories.
    video thumbnail
    View video / contact form
    Please select the Preference cookies to activate the display.
    Activate cookies
    5-axis machines, deep drilling machines, turning/milling centers with main and sub spindles, large machines with interchangeable heads and units, industrial robots

    Reliable calculation and planning

    Get started right away with suitable tools, setups and tilt directions

    You select the suitable machines, machine heads, clamping devices, shuttle tables, units and tools from your available resources. You can define any reference points, the values for which can be transferred for the setups in NC programming. You know the total number of necessary machining operations. And you can detect and prevent collisions before even starting NC programming. This is done by moving the tool along critical part areas – such as cavities, deep holes and undercuts – directly on the virtual machine with a special planning function and having the system display potential collisions. The CNC simulator is so precise that, right from the start, you can carry out planning using the shortest tools possible. This enables you to benefit from high feed rates in manufacturing.

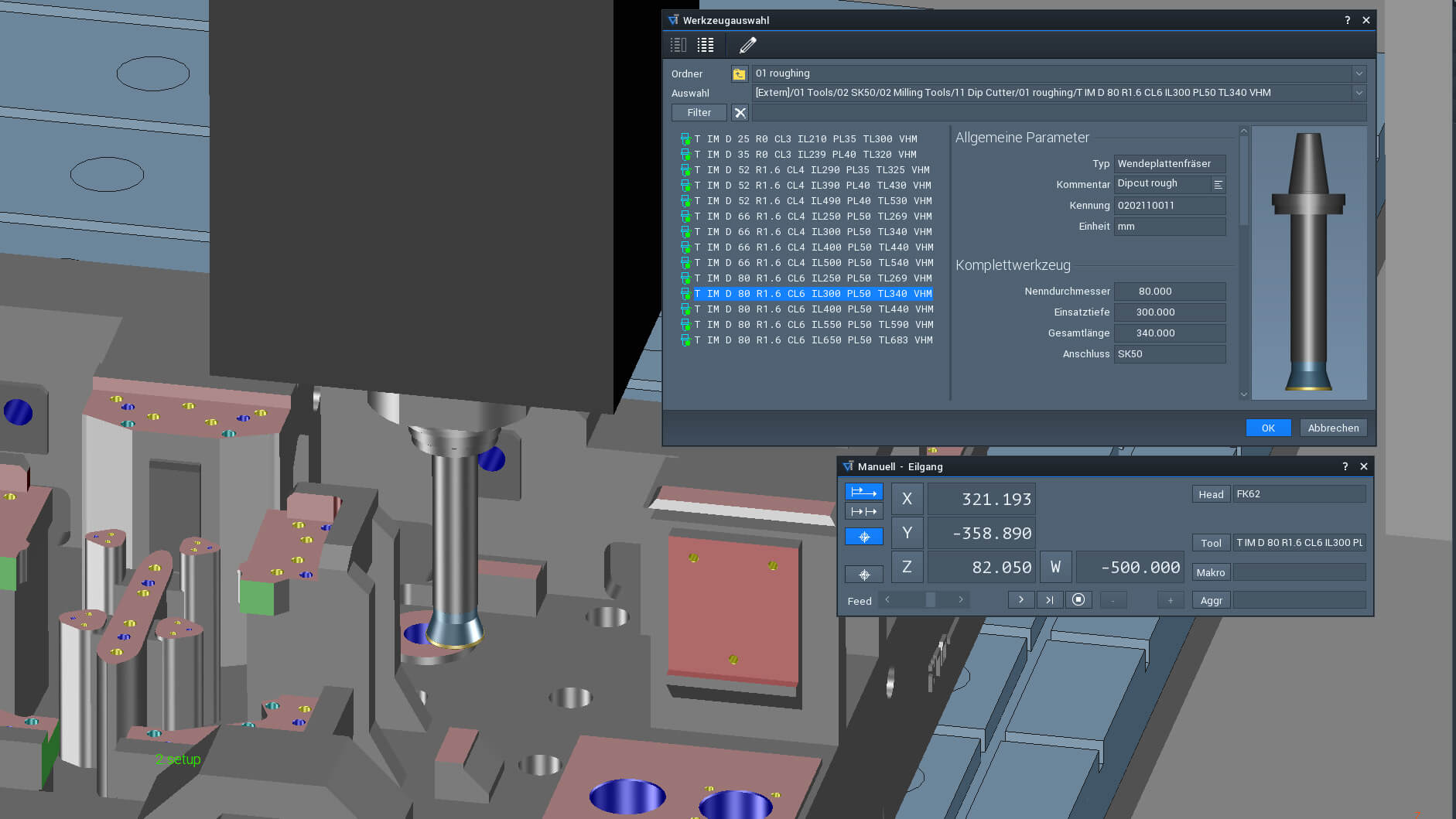

    Use the tool library from the planning phase and select tools with appropriate programming length.

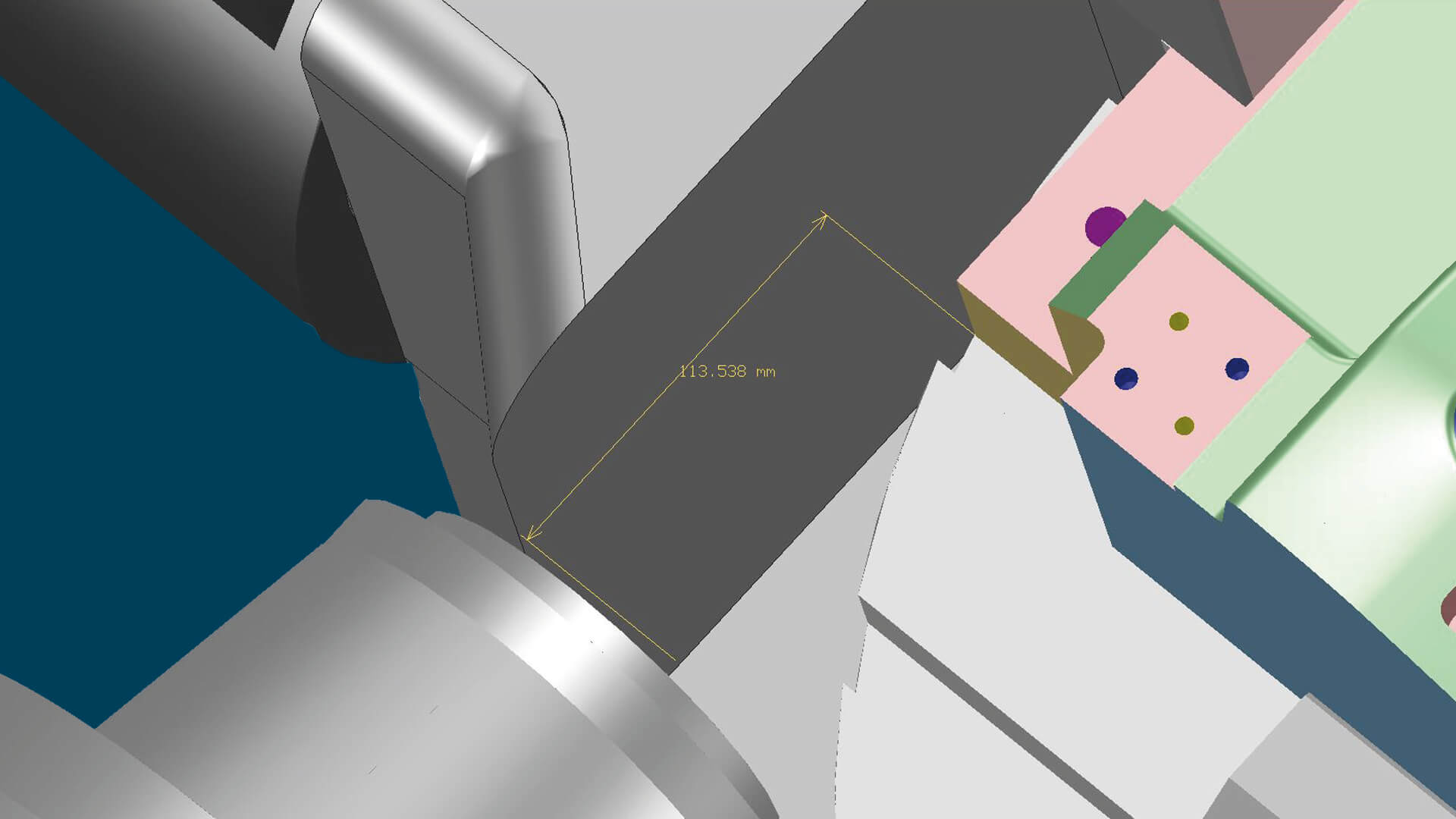

    The analysis functions show distances and angles between part and machine components. Tilt axis systems are easily defined with a click of your mouse.

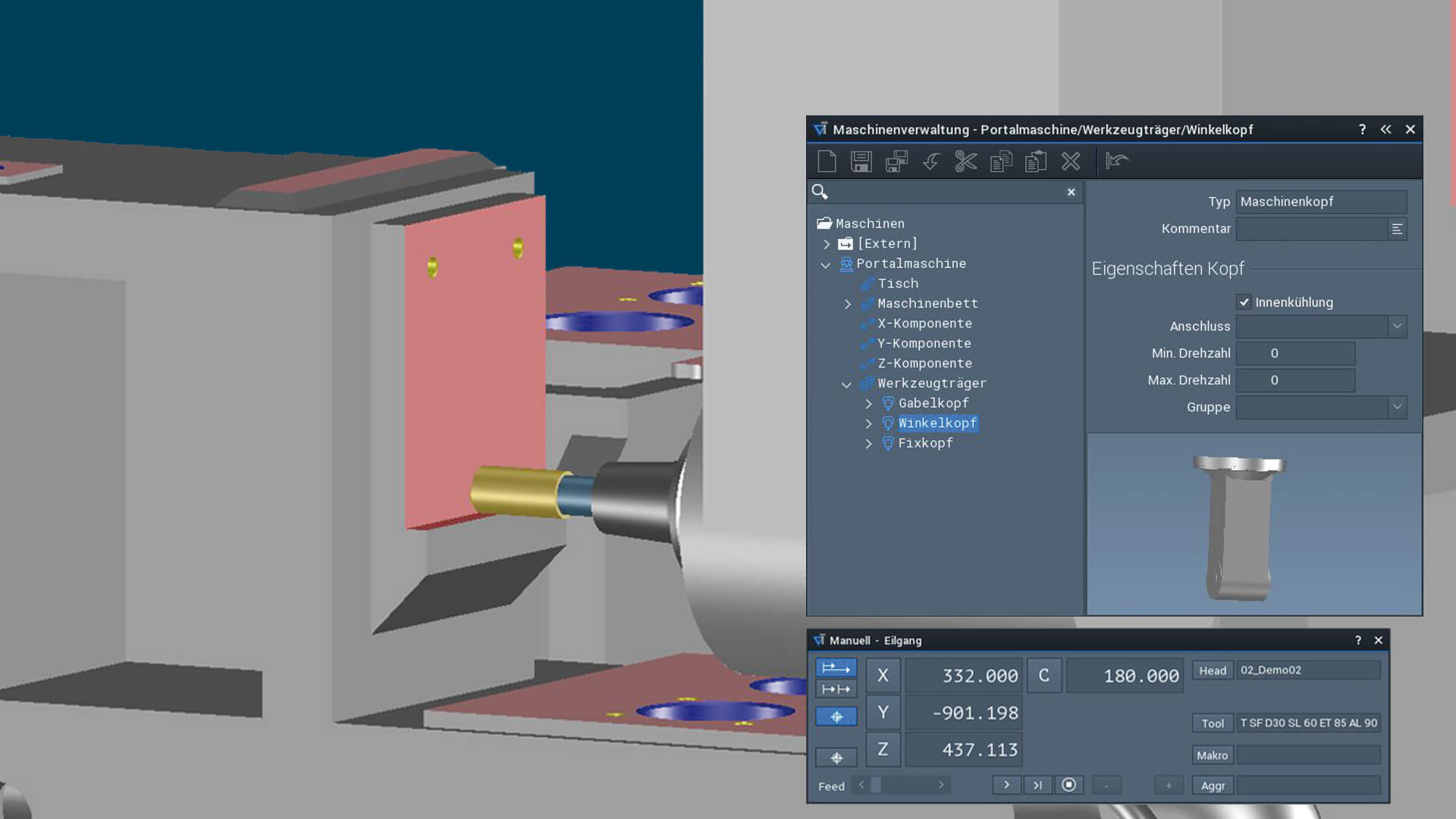

    Collisions between the part and machine head can also be detected at an early stage and prevented by changing heads.

    Program, check and optimize for reliable processing

    Directly in the CAM environment

    During NC programming, you can realistically set up the digital machine in the Job Manager with clamping devices and units such as jaw chucks, steady rests and tailstocks and access any tool assemblies. The result arrives at the setup station with all relevant information – because the NC output automatically generates precise and comprehensive NC documentation. The person responsible for the setup can immediately see what needs to be done.
    video thumbnail
    View video / contact form
    Please select the Preference cookies to activate the display.
    Activate cookies
    Set up virtual machine with clamping devices
    video thumbnail
    View video / contact form
    Please select the Preference cookies to activate the display.
    Activate cookies
    Practical example for multiple setup
    Know exactly how long it will take and plan better: Store dynamic parameters – like those from the manufacturer's data – in the virtual machine. The machining times are automatically calculated.
    video thumbnail
    View video / contact form
    Please select the Preference cookies to activate the display.
    Activate cookies
    video thumbnail
    View video / contact form
    Please select the Preference cookies to activate the display.
    Activate cookies

    Maximum process reliability: You can check the complete machining scenario with all positions, axis and traverse movements, stepovers and components.

    Potential conflicts such as cutter collisions, head collisions or limit switch collisions are displayed in a clearly structured list. You decide based on the application whether you want to accept or correct conflicts. Your modifications are saved in the toolpath and are included in the postprocessing output.

    Various options are available for optimizing your NC programs depending on the machining situation. You can change the tool, the machine or the machine head, change the setup position, rotate the axes interactively or change the head tilt direction.

    Collision checking can also be run in the background: You can simply continue working on the next program at the same time.

    Flexibly control the machine configuration in the CAM environment

    Even in the middle of a machining operation, you can place units and clamping devices at any position or change the starting values for additional axes such as gantry axes, quills or rotary axes.

    video thumbnail
    View video / contact form
    Please select the Preference cookies to activate the display.
    Activate cookies

    Flexibility in the shop

    The CNC Simulator is also indispensable in the shop. The machine operator obtains information on blank and part geometries, setups and the tools used. And if the machining operation still has to be adjusted on short notice – such as in the case of a machine outage or if tools are eliminated – this can be done easily. Technology data such as feed rates or spindle speed, setups or the processing sequence can be quickly and easily changed. The affected toolpaths can be rechecked for collision with the click of a mouse and output via the integral postprocessors.

    White paper on digitalization

    More clarity in manufacturing

    A revolution in manufacturing

    The requirements for single part and small series manufacturing in production machining and systems manufacturing are continuously increasing

    Download

    What our customers are saying about Tebis simulation technology:

    GEDIA Gebrüder Dingerkus GmbH

    "To reduce our collision rate to zero and to simultaneously save time-consuming checking after postprocessing, we used a simulation with millimeter accuracy of the machine model and the tools in the virtual world. Only Tebis was able to do this."

    Hermann Geueke, Head of Mechanical Manufacturing

    GEDIA Gebrüder Dingerkus GmbH, Attendorn, Sauerland, Germany

    Read full story
    Integrity Tool and Mold – growing strong with Tebis

    "Tebis can be used to automate many processes, and users lose no time working with different files. These benefits are especially evident when there are design changes".

    Ryan Hotchkiss, Head of manufacturing

    Integrity Tool and Mold

    Read full story

    For everyone who wants to learn more

    Webinars, technical articles, interviews ...

    Reliable manufacturing with digital twins

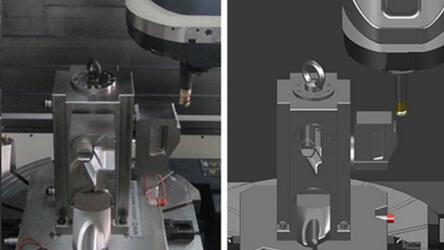

    Digital twins as a virtual image of the actually existing manufacturing equipment and processes are the basis for correct and collision-free NC manufacturing.

    Webinar recording (German)

    CNC simulator: Automated collision-free manufacturing

    In this free webinar by Tebis Product Manager Roderich Kulbach, learn how to optimize your manufacturing with the Tebis CNC Simulator, thereby laying the foundation for collision-free and automated manufacturing.

    Webinar recording (German)

    We want to control the machine

    In an interview with the trade magazine NCFertigung, Reiner Schmid, Head of the Tebis Product Management Department, explains what it means to program with a virtual machine and thus keep even complex machines with all their kinematics and traverse movements under control right from the start.

    Read interview
    Tebis simulation technologies: No compromises

    Without process libraries, it would be impossible to program with digital twins in the virtual Tebis world. The machine library alone includes over 1,400 virtual models in 4,700 variants. And there is no tool that cannot be represented in the Tebis tool library.

    Read full article
