Interchangeable insert: Multi-axis simultaneous milling

View video / contact form

Please select the Preference cookies to activate the display.

Activate cookies

The story of the part

Part and machining

Target market:	Mold manufacturing
CAD/CAM software:	Tebis
Machine:	DMU 65mB and 75mB
Machining tools:	MOLDINO Tool Engineering
Clamping devices:	Die-cast fixture
Material:	Tool steel 1.2312
Dimensions:	Ø 130 mm x 87 mm x 60 mm

Follow us ...



This interchangeable insert was machined using different milling strategies and tool types with collision checking.

• 3-axis tilted and multi-axis simultaneous machining
• High-efficiency roughing: 3-axis and 5-axis simultaneous machining with high-speed cutters
• Adaptive milling for high material removal rate and extended tool life
• 5-axis simultaneous finishing with circle-segment and ball cutters

Any questions?

Contact us! Our software experts will be happy to advise you.

Contact form

Would you like to learn more?

5-axis simultaneous milling

Simultaneous 5-axis milling for optimal machine performance

5-axis simultaneous milling

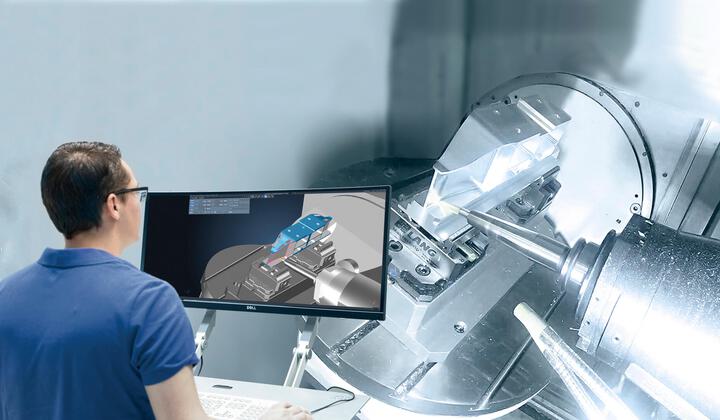

CNC simulator
