    Preparing CAD models for manufacturing

    Fast and easy to modify

    Precise preparation of the CAD models is the basic prerequisite for almost completely automated NC programming. Manufacturing preparation can also be quickly performed, mostly with a high degree of automation. Tebis also offers highly convenient functions for interactive intervention: for example, to close complex recesses. Processes can be more easily planned with extensive options for part analysis.
    High data quality
    Resulting high manufacturing quality and short manufacturing times
    High efficiency
    Standardized and automated NC programming is possible
    Always ready
    Fast learning curve for employees during NC programming

    Automated data preparation with CAD templates

    Place holes for setup systems, design fill surfaces for roughing, prepare blanks, generate connection points for various setups, position clamping devices, define retract planes – these are all typical examples of repetitive tasks that can be combined in rule-based CAD templates. The CAD data prepared in this way are immediately used in automated CAM programming. All that your CAD/CAM users have to do is select the part and specify the machining direction – and the system takes care of the rest.
    You still remain highly flexible: Changes like selecting a different clamping system can be controlled directly and conveniently with the user parameters in the object tree. Parameters like the length, radius or direction of elements can also be modified with the click of a mouse.
    video thumbnail
    View video / contact form
    Please select the Preference cookies to activate the display.
    Activate cookies
    Save over 90 percent time with automated data preparation.
    Straight to CAM programming with automated CAD templates
    video thumbnail
    View video / contact form
    Please select the Preference cookies to activate the display.
    Activate cookies
    Automatically adjust auxiliary geometries and finished parts for a smaller, similar model.
    video thumbnail
    View video / contact form
    Please select the Preference cookies to activate the display.
    Activate cookies
    One template for any part: Easily modified data preparation that’s optimal for manufacturing.
    video thumbnail
    View video / contact form
    Please select the Preference cookies to activate the display.
    Activate cookies

    Inserting features

    Features contain manufacturing information and are linked to standardized NC sequences. The Tebis feature scanner detects prismatic areas that can be manufactured automatically and converts the design feature into an intelligent NC feature.
    video thumbnail
    View video / contact form
    Please select the Preference cookies to activate the display.
    Activate cookies
    The video shows how the Tebis feature scanner analyzes the part and automatically inserts appropriate features.

    Design functions for the NC programmer


    Sometimes the NC programmer has to intervene interactively during data preparation: for example, to generate complex fill surfaces and extension surfaces or area and center curves. It may also be necessary to first design the geometry of the blank. These tasks can be quickly and easily performed with Tebis. Parts can also be simplified and split for a better overview.

    Create complex fill surfaces

    video thumbnail
    View video / contact form
    Please select the Preference cookies to activate the display.
    Activate cookies
    Less time required: Create complex fill surfaces
    video thumbnail
    View video / contact form
    Please select the Preference cookies to activate the display.
    Activate cookies
    Quickly complete the following tasks: Generate fill surfaces and support curves

    Extend surfaces

    Extend surfaces with drag arrow

    Surfaces are extended by simply moving the drag arrow.

    Create guide curves

    Slot machining
    Use a wizard to define center curves for machining deep slots
    All about 3D and 5-axis milling with Tebis.

    Design blanks

    Tebis offers several automatic design functions for defining blanks:

    • With a part envelope
    • With a casting allowance
    • As a layered blank
    • As a 6-sided blank
    • With an extruded profile
    Defining blanks

    Analyzing geometry

    Tebis offers extensive functions for analyzing geometry:

    • Calculate lengths, surfaces and volumes for costing and ordering materials
    • Determine dimensions like coordinates, length, radius, distance and angle
    • Real-time intersection functions through the part
    • Compare two versions to detect changes
    • Detect and identify bores
    • Detect planar surfaces: for example, for defining tool lengths
    • Detect and identify roundings
    • Compare two manufacturing stages to determine the remaining material to be removed
    • Detect geometric steep areas and undercuts to define appropriate milling directions
    • Detect surfaces with quality features that haven’t been complied with, including gaps, high segmentation, and overlapping surfaces
    • Analyze curvatures to evaluate surface quality
    video thumbnail
    View video / contact form
    Please select the Preference cookies to activate the display.
    Activate cookies

    Analysis functions for the example of a part from mold manufacturing

    • Determine dimensions
    • Analyze roundings
    • Detect undercuts
    • Detect planar surfaces
    • Detect bores
    video thumbnail
    View video / contact form
    Please select the Preference cookies to activate the display.
    Activate cookies

    Analysis functions for the example of a sheet metal die

    • Determine dimensions
    • Analyze planar surfaces and roundings
    • Determine steepness relative to Z-axis
    • Detect bores
    • Real-time intersection function
    • Analyze material thickness
    • Compare part versions

    Other interesting topics

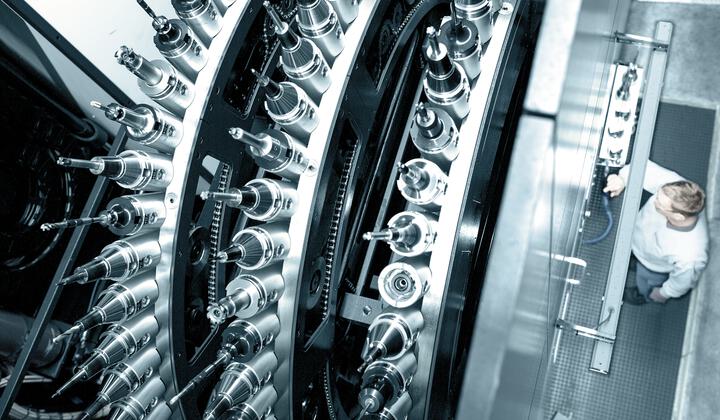

    CNC automation
    Tebis Automill® evaluates the digital CAD part model and accesses a previously stored structure of digital representations of the company's manufacturing environment and the manufacturing knowledge stored in templates to calculate the NC programs.
    More...

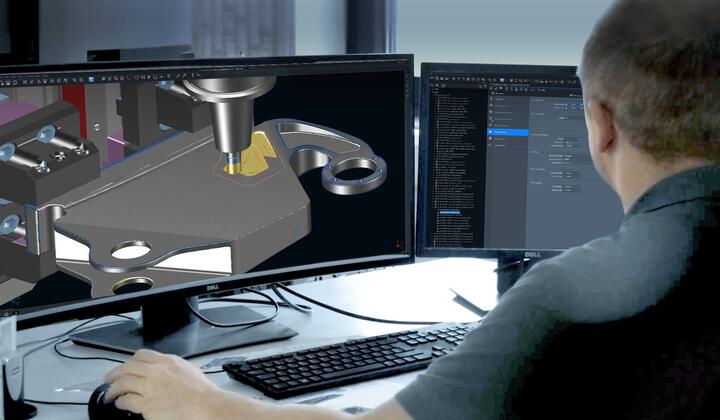

    CNC programming
