    Integrated collision avoidance with Tebis

    Martinsried, May 20, 2021 – Tebis, a specialist in CAD/CAM and MES process solutions in model, die and mold manufacturing, offers its enterprise customers a fully integrated solution that detects and resolves potential collisions using digital twins in the CAM environment. Tebis has added more features to this well-proven approach in Version 4.1: The option for head collision checking is now also fully integrated in the Tebis virtual machine model, along with new functions for 5-axis simultaneous avoidance milling.



    Integrated collision avoidance "The Tebis way of doing it"

    "The earlier in the process chain that collisions are avoided, the better. Because detecting and avoiding potential collisions almost always results in unwanted downtime and unnecessary costs," explains Fabian Jud, Product Manager at Tebis: "Our approach is proven and safe: We rely on verifying toolpaths and avoiding collisions within the CAM environment. We do this by using digital twins of the real manufacturing environment."

    The machining situation is reproduced precisely in the virtual world by Tebis to ensure that the integrated collision checking functions safely. This includes all geometries – including machines, tool assemblies, clamping devices and limit switches. Tebis completely eliminates simplified substitute geometries: The basis for the NC calculation is usually the accepted machine model. This enables a digital twin of the real NC code to be generated in the CAM environment.



    New: The machine head is fully accounted for in collision checking/automatic area reduction.

    In the event of potential collisions with the machine head, milling areas are now automatically reduced or excluded from the machining operation in the NC calculation.

    Automatic area reduction is generally used in 3-axis roughing: Milling areas that can’t be machined with the tool in use – because of a collision with the machine head, for example – are automatically deactivated.

    With the new area reduction, users employ the shortest possible tools for each milling job, which ensures optimal cutting conditions.

    The head or table can also be rotated interactively around the C axis during the calculation in the machine kinematics. The benefit is especially clear for asymmetrical heads: The maximum amount of material is removed with the selected tool. Unnecessary residual stock is avoided. The interactive rotations are immediately accounted for in the area reduction.



    New: Additional avoidance milling functions

    Given an appropriate machine and control, 3+2-axis programmed toolpaths can also be automatically converted to 5-axis simultaneous toolpaths for collision avoidance. One of the special features in Tebis is that the tool movements can also be controlled interactively with vectors. The user can therefore optimally adapt the cutting conditions to the specific machining situation. The vectors determine the tool tilt direction and pivot movement.

    CAM programming with intelligent collision avoidance strategies

    Collisions that can be detected while calculating the NC program can be immediately identified and avoided with the appropriate collision avoidance strategies. The most appropriate strategy depends primarily on the specific component geometry, the machining task and especially the available machine. This knowledge should be stored in NC templates. This means that the CAM programmer only needs to select the machine and machining elements. The appropriate collision avoidance strategy – with area reduction, simultaneous 5-axis avoidance milling or indexed machining – is then automatically assigned in each case.



    Benefits of the Tebis approach:

    * Additional interface operations and correction loops are avoided.

    * This approach is easier to manage, because the CAM programmer doesn’t need any special knowledge of machine code or other simulation software.

    * No manual corrections to the NC code that could place process safety at risk are necessary.

    * Planning is easier, because the CAM programmer has access to all the virtual manufacturing components that are represented in virtual process libraries.


    * All corrections automatically flow back into the CAM environment, so errors are never repeated.

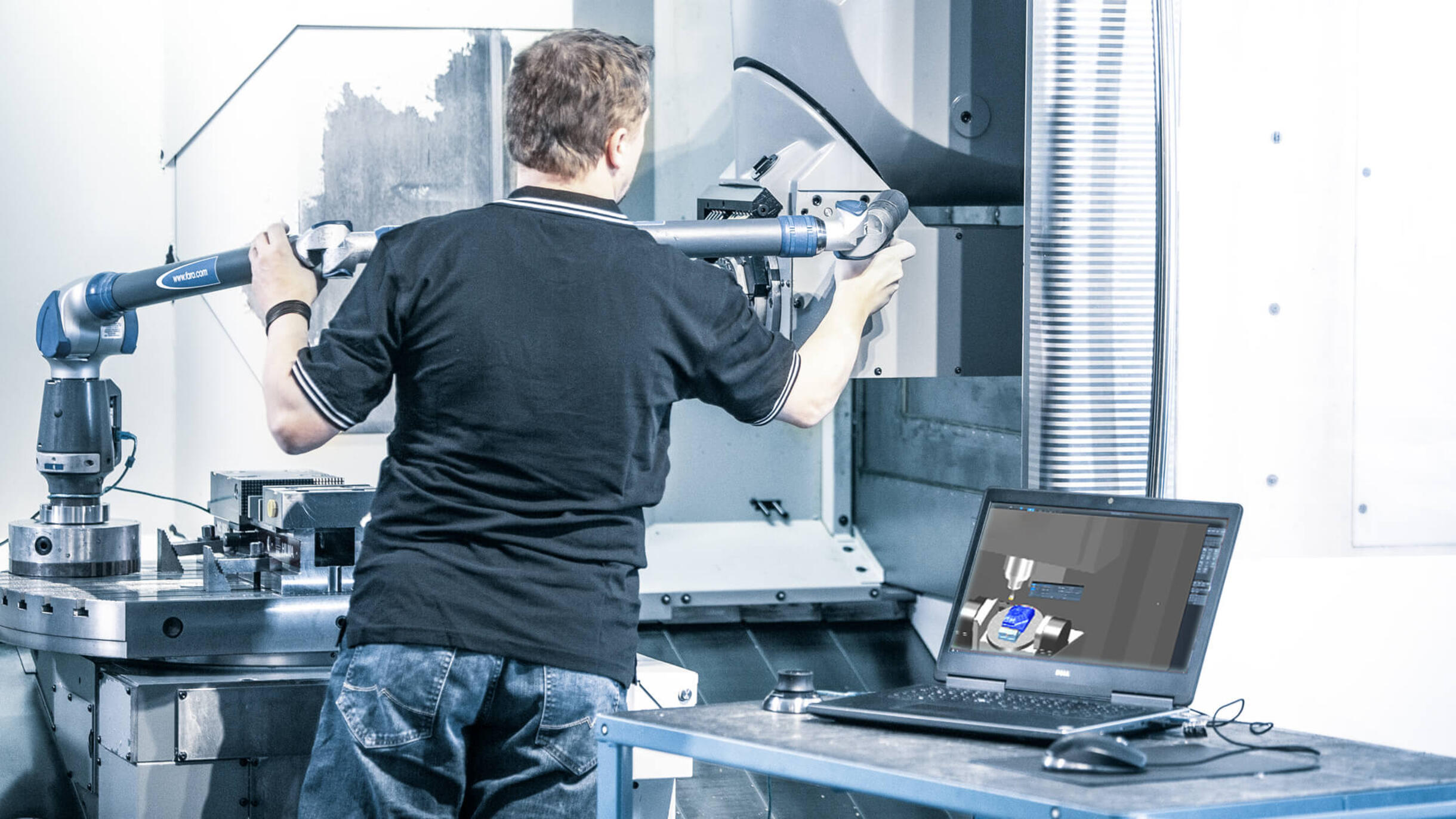

    Image 1 The real machining situation is perfectly represented in the virtual world in Tebis. All properties of the machine are precisely measured and transferred to the CAM system for this

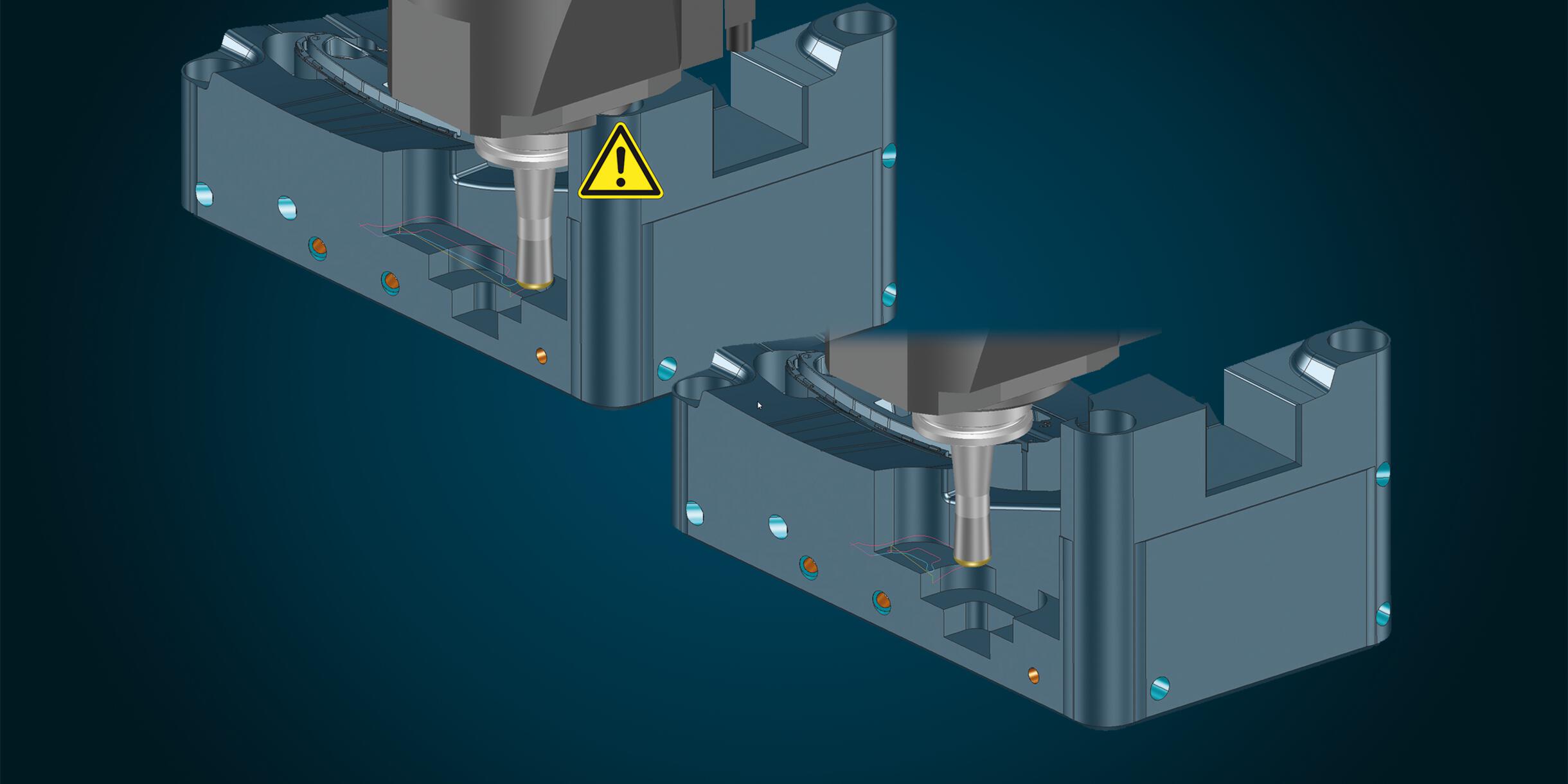

    ​​​​​​​ Image 2 Head collision without area reduction versus collision avoidance with area reduction and machine head fully accounted for  (Image: Tebis AG)

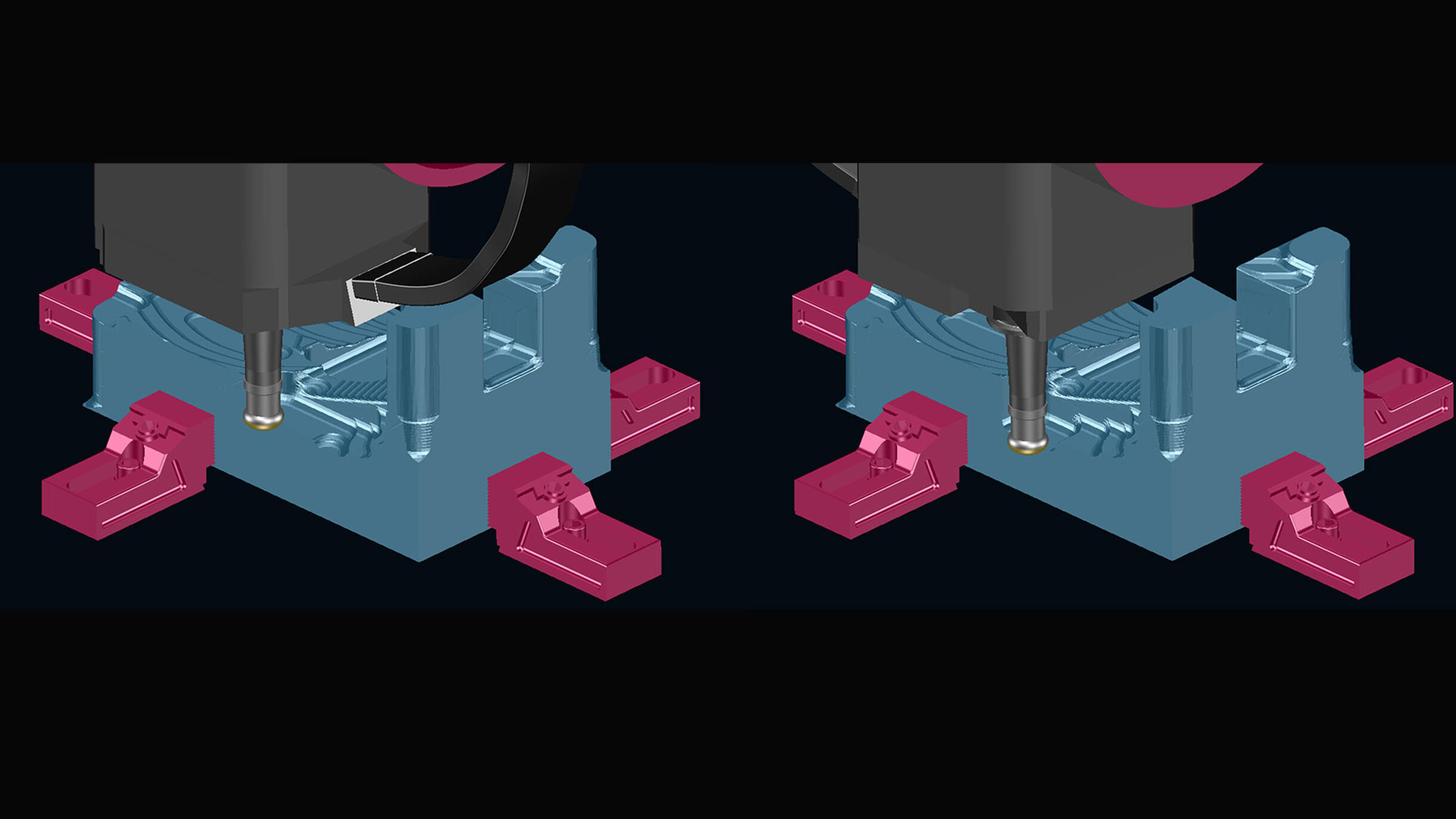

    Image 3 Interactively rotate the machine head around the C axis during NC calculation and remove more material.

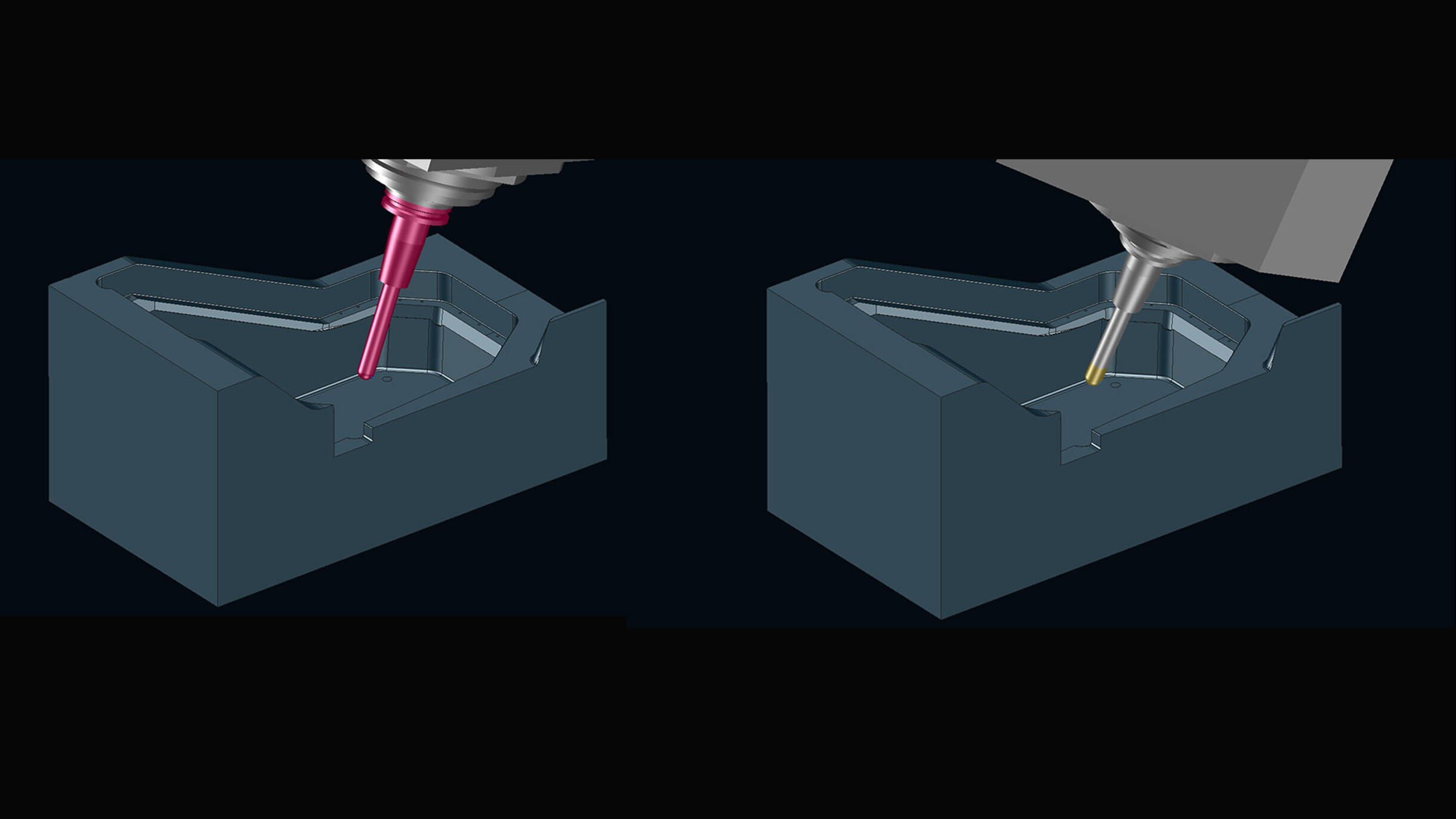

    Image 4 New: Specifically influence 5-axis simultaneous avoidance movements with vectors (Image: Tebis AG)
